Features:

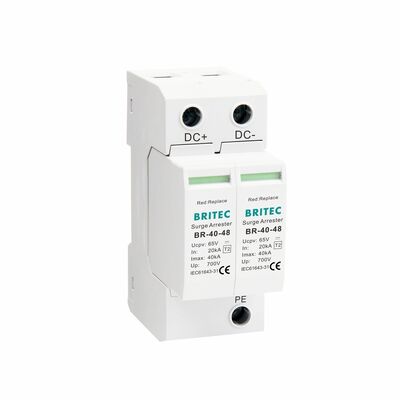

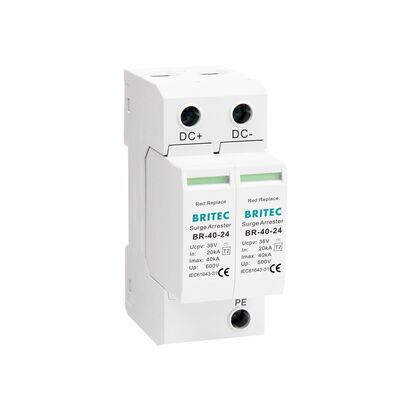

- Product Name: DC Surge Protection Device
- Format: Plug-in Modular for easy installation and maintenance
- Degree of Protection: IP20, providing reliable protection against solid objects
- Response Time: ≤25ns, ensuring rapid response to voltage spikes
- Operating Temperature Range: -40℃ to +85℃, suitable for various environmental conditions
- High-performance SPD designed to protect DC electrical systems
- Effective DC surge protective device to safeguard photovoltaic (PV) systems
- Functions as a PV surge protector, preventing damage from transient overvoltages
Technical Parameters:
| Product Name |
DC Surge Protection Device |
| Format |
Plug-in Modular |
| Degree of Protection |
IP20 |
| Cross-section Area (Min.) |
4mm² |
| Cross-section Area (Max.) |
35mm² |
| Maximum Discharge Current |
40kA (8/20μs) |
| Response Time |
≤25ns |
| Operating State |
Green / Red |
| Enclosure Material |
Thermoplastic UL94-V0 |
| Humidity Range |
≤95%RH |
Features:
DC power supply SPD.
With working indication window.
Designed according to IEC standards.
The main module and the base are replaceable.
With remote indication contact.
Mounting on symmetrical rail 35mm (EN60715).
Degree of protection according to IEC/EN60529: IP20.
Application:
Protect equipment connected to direct current (and alternating current) power supplies from lightning surges.
Applied to electrical systems to provide a discharge path to earth to save those systems’ components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies.
Used to DC electrical power distribution, DC electrical circuit of machine-room, DC electrical distribution board, DC electrical power distribution cabinet, DC electrical power supply equipment, and 24V DC bus.
Britec Imp. & Exp. Wenzhou Co., Ltd. was established in 2003. Britec is a professional surge protective devices (SPD) manufacturer who design and manufacture surge protection devices for power protection, data protection, PV protection etc.
Britec owns in-house laboratory, the lab has 100kA 10/350µs lightning impulse generator, 25kA 10/350µs impulse generator and 120kA 8/20µs generator, 1.2/50µs 20kV combination generator, TOV test station and other test equipment.
The company carries ISO9001, ISO45001 , ISO14001 management system. Various products are TUV, CB CE, RoHS, certified.
Britec has long business relationship with European customers and well experience working with multi-national companies.
