Name: TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd
Brand: BRITEC
SKU: TY2-30
Price: 1 USD
Availability: InStock
Rating: 4.7 (187 reviews)

Dom Produkty Zabezpieczenie przeciwprzepięciowe typu 2

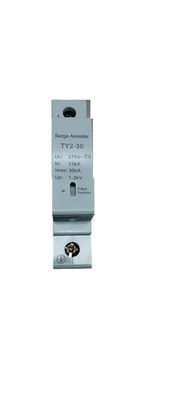

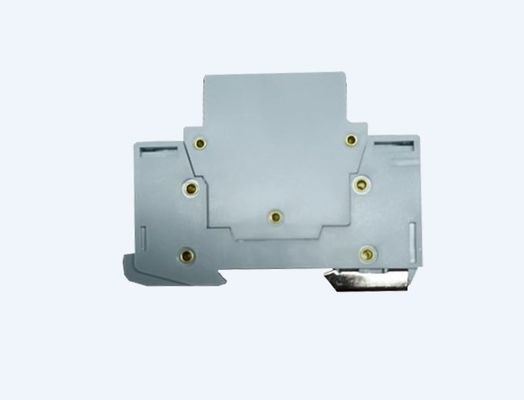

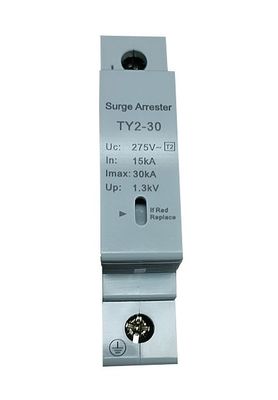

TY2-30 Type 2 Surge Protection Device Surge Protector 275V Single Phase Spd

Szczegóły Produktu:

Miejsce pochodzenia:	CHINY
Nazwa handlowa:	BRITEC
Orzecznictwo:	TUV/CB/CE/ROHS/ISO9001
Numer modelu:	TY2-30

Zapłata:

Minimalne zamówienie:	1 sztuka/sztuk
Szczegóły pakowania:	Pakowanie eksportowe
Czas dostawy:	Wysyłka w ciągu 15 dni po dokonaniu płatności
Zasady płatności:	L/C, D/A, T/T, Western Union
Możliwość Supply:	50000 sztuk / sztuk Miesiąc

Kontakt

Szczegółowy opis produktu

Nazwa przedmiotu:	prędkość jednofazowa	Typ:	T2
Pakiet:	Opakowanie kartonowe	Przebieg:	8/20
Certyfikat:	TUV CE IEC ROHS	Montowanie:	Szyna DIN 35 mm.
Gwarancja:	5 lat	Rodzaj prądu:	AC
Częstotliwość znamionowa (f):	50/60 Hz	Zapłata:	Paypal.TT.Western Union
High Light:	Type 2 Surge Protection Device 275V , Single Phase Spd Type2 Surge Protector , 60Hz Spd Type 2 Surge Protector

275V surge voltage protector tvss spd Type 2 surge arrester

Type 2 surge arrester Features:

Products features:

1. Pluggable module, easy for installation and maintenance

2. High discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Green window will change when fault and also provide remote alarm control at the same time

Type 2 surge arrester Technology characteristic:

	TY2-30
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	15kA
Maximum discharge current (8/20us) Imax	30kA
Voltage protection level Up	≤1.3kV
Response time tA	≤25ns
Max. backup fuse	125A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

AC SPD Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Type 2 surge arrester Application:

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity

Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V

Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.

Type 2 surge arrester Certificate:

CB, CE, TUV,RoHS Certificate:

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
