Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: BRITEC
Numer modelu: BR-12,5M 275 3 + 1
Zapłata:
Minimalne zamówienie: 100 sztuk / sztuk
Szczegóły pakowania: PAKOWANIE EKSPORTOWE
Czas dostawy: Wysłane w terminie 15 dni po dokonaniu płatności
Zasady płatności: L / C, D / A, T / T, Western Union
Możliwość Supply: 50000 sztuk / sztuk miesiąc
Kontakt
Szczegółowy opis produktu
Nazwa elementu: Ogranicznik przepięć Miejsce pochodzenia: Zhejiang, Chiny (kontynent)
Nazwa handlowa: BRITEC typu:
materiał: Wpisz element: Moc odgromowa
Kolor: Biały Ucfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl: 275v
Iimpfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', ': 12,5 kA Użycie:
Czas dostawy: 15-30 dni standardowe: IEC 61643-1
High Light:

lightning protection device

,

lightning surge protector

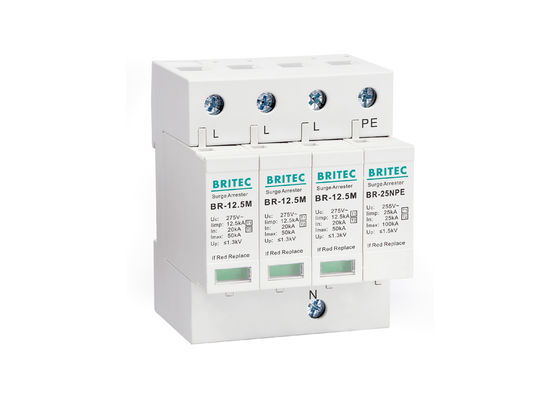

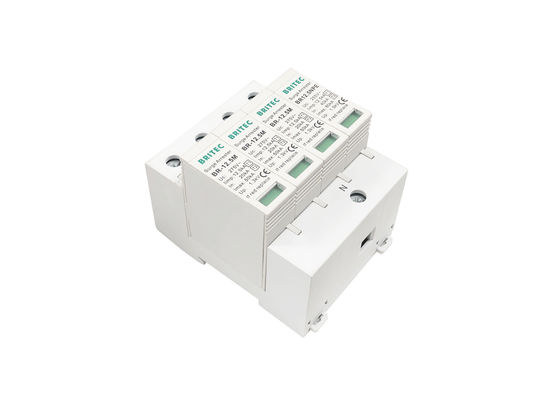

AC 275v Type 3pole+NPE Power Lightning Protection Class 1+2 Surge Arrestors



Feature:



Class I+II, Class B+C 12.5kA high discharge capacity TT and TN-S system lightning protector.
Designed according to IEC 61643-1.
Pluggable module, high discharge capacity, quick response.



Technology characteristic:



  BR-12.5M 275 3+1
Max. continuous operating a.c. voltage                             Uc 275V
Lightning impulse current (10/350us)                              Iimp 12.5kA
Max. discharge current (8/20us) (L-N/N-PE)                  Imax 50kA / 70kA
Voltage protection level (L-N/N-PE)                                   Up ≤1.3kV / ≤1.5kV
Response time (L-N/N-PE)                                                 tA ≤25ns / ≤100ns
Max. backup fuse 160A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Dimension 4mods
Test standards IEC 61643-1



Dimension:



AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0



Application:

Designed to protect low voltage devices from surge damage, mainly used in power supply system such
  as power distribution room, distribution cabinet and other important power supply system, specially
  designed for TT and TN-S system.
Applied in SPD Class I+II (Class B+C) for power supply system of lightning current surge protection.

Certificate:

AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Shipping:

AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Payment:

AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Production Flow:

AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Test Facilities:

In order to test its products internally for standards compliance and to evolve toward greater reliability
we has test site.

AC 275v Type 3 Pole + NPE Power Lightning Protection Class 1+2 Surge Arrestorsfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

FAQ:

Q1: What's your warranty?
A1: The warranty is 2 years and we deliver new and faultless products.


Q2: What's the standard of package?

A2: Inner box and out carton are made as per international standard and we can make special design

      according to customer's need.



Q3: Could you do OEM for us?
A3: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.
