Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: BRITEC
Numer modelu: BR-60 275 1 szt
Zapłata:
Minimalne zamówienie: 100 sztuk / sztuk
Szczegóły pakowania: PAKOWANIE EKSPORTOWE
Czas dostawy: Wysłane w terminie 15 dni po dokonaniu płatności
Zasady płatności: L / C, D / A, T / T, Western Union
Możliwość Supply: 50000 sztuk / sztuk miesiąc
Kontakt
Szczegółowy opis produktu
Nazwa elementu: Ochrona przed zwarciem : Zhejiang, Chiny (kontynent)
Nazwa handlowa: BRITEC typu:
materiał: Thermal plasticfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translateP Wpisz element: Ochrona przed piorunami
Kolor: Biały Ucfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl: 275v
W: 30kA Użycie:
Czas dostawy: 15-30 dni standardowe: IEC 61643-1
High Light:

lightning protection device

,

lightning surge protector

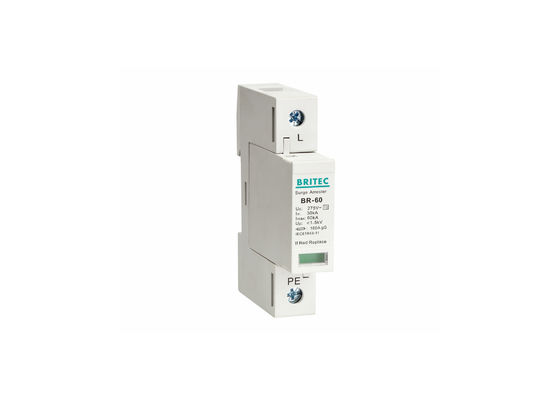

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275v



Feature:



Indoor fixed installation, voltage limited type.
It adopts 35mm standard rail.
The response time in the 25 nanosecond.
When the SPD works normally, the visible window displays green, and when it fails, it displays red.



Technology characteristic:



  BR-60 275 1P
SPD classification according to EN61643-11 Type 2
SPD classification according to IEC61643-11 Class II
Max. continuous operating a.c. voltage                       Uc 275V
Nominal discharge current (8/20us)                              In 30kA
Max. discharge current (8/20us)                               Imax 60kA
Voltage protection level                                               Up ≤1.5kV
Max. backup fuse 200A
Response time                                                              tA ≤25ns
Operating temperature range                                       Tu -40℃—80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                   Thermal plastic UL94-V0
Degree of protection IP20



Dimension:



Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0



Application:

Used to protect all kinds of electrical equipment in the power system from lightning over-voltage,
  operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance.

Workshop:

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Certifications:

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

Shipping:

Class II Home AC 1p Lightning Protection Imax 60kA Power Surge Protector 275vfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'pl', function () {});} 0

FAQ:


Q1. What advantages do you have?

A1. We are the direct Manufacturer in Wenzhou China, we have professional developing,

      marketing & production team to offer you the most competitive price and best service.



Q2. Could you print our own logo?

A2. Yes, our company are available for Retail & Wholesale & OEM & ODM.



Q3. How long is the quality guarantee?
A3. 2 years warranty, our products are 100% inspection.
